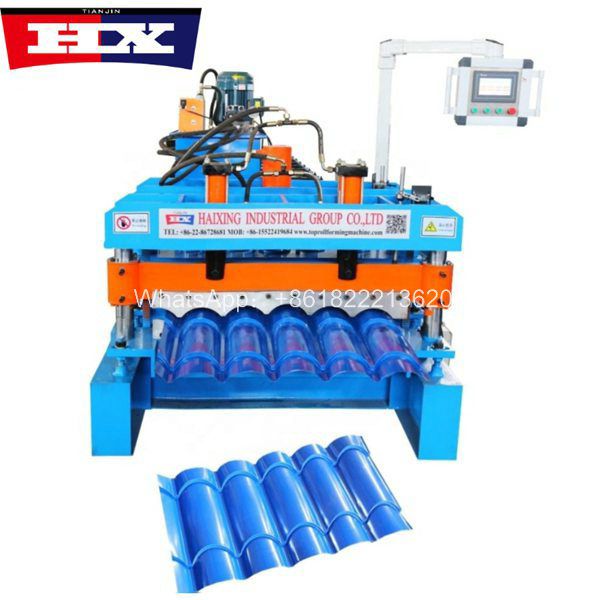

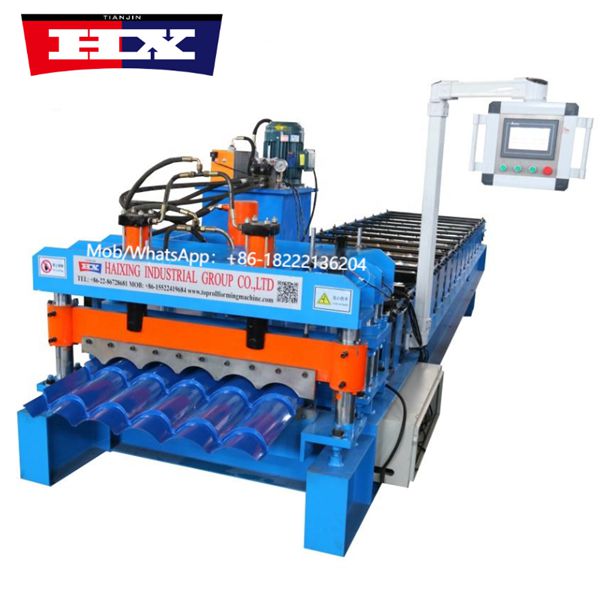

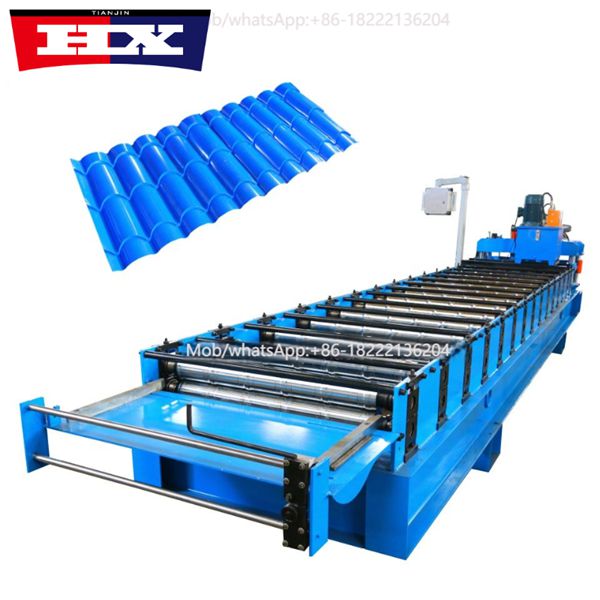

830 Glazed tile making machine
Glazed tile making machine has different types which used together with corrugated sheet and trapezoidal sheet, or other roof tile sheet.

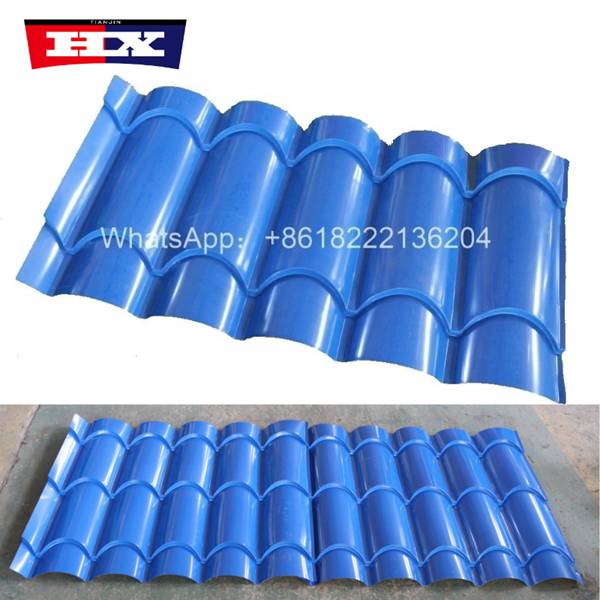

The glazed roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
Choose our Glazed Roll Forming Machine for high efficiency, precision, and durability, ensuring superior-quality roofing sheets for a wide range of construction applications.
Contact us by：Mob/WhatsApp: 0086-18222136204

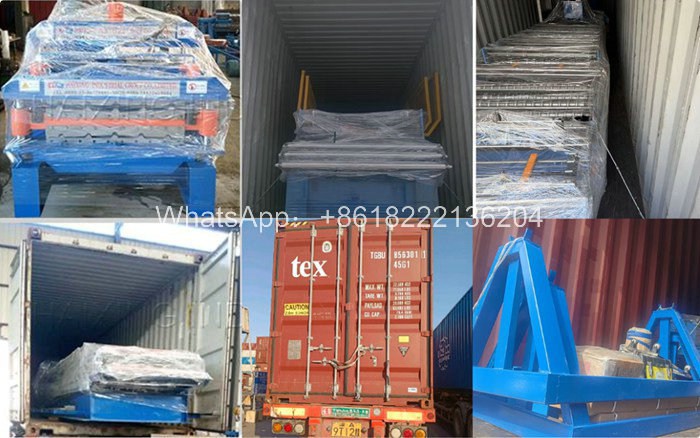

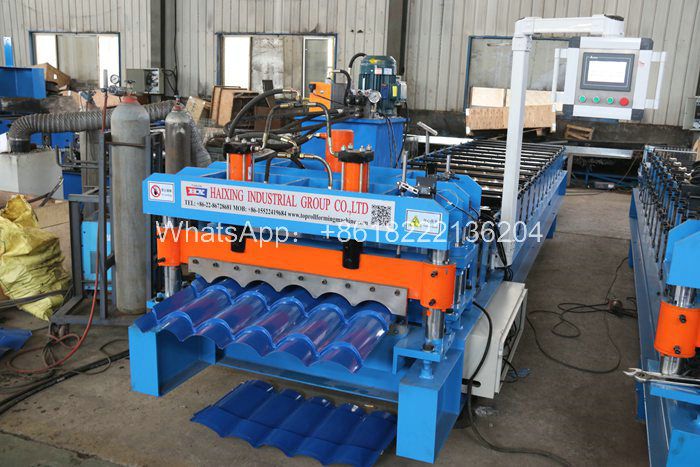

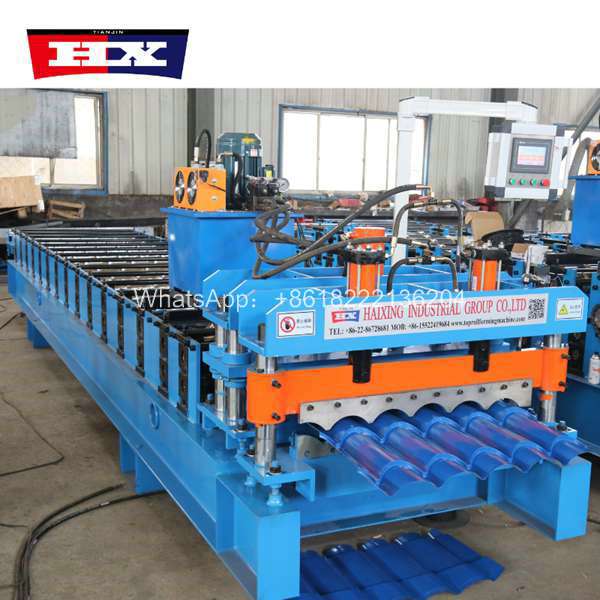

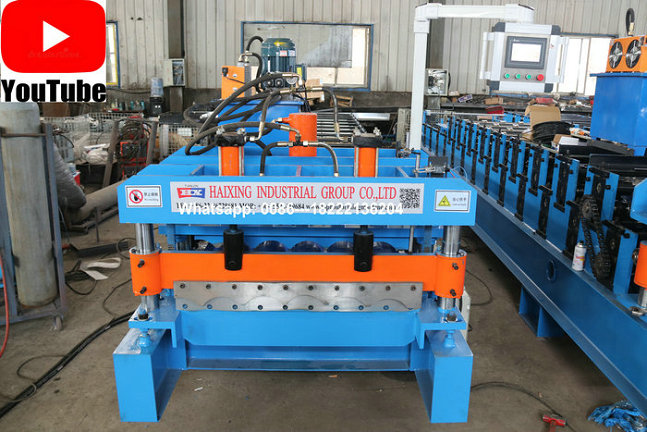

830 Glazed tile making machine Photos and Video
https://www.youtube.com/watch?v=CAx5lPjRWUM
830 Glazed tile making machine Main Parameter
| No. | Glazed tile making machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |

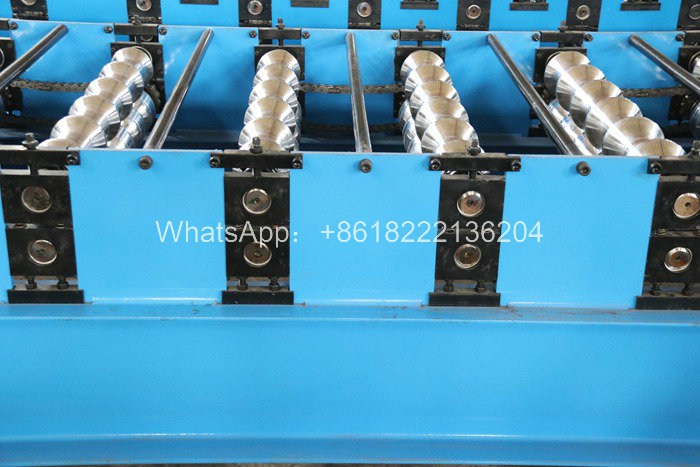

| 2 | Roller | 15Rows |
| 3 | Dimensions | 7.8*1.5*1.6m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 3-5m/min |
| 8 | Material of the cutting blade | Cr12 MoV,Quenched treatment 58℃-60℃ |

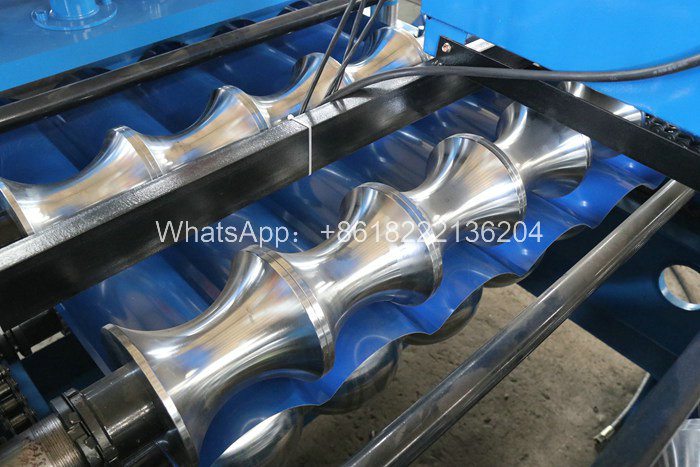

| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5000kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm/18mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch/1.2inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Chain driver |
| 19 | Touch screen | Delta |
| 20 | Rollier material | 45# forging steel with chromium plated |
| 21 | Length Tolerance | ±2mm |
8618222136204
Advantages
Q: Why choose us?
1. 28 + Years of Expertise since 1996, Leading Quality Roof Roll Forming Industry.
2. Design and Making High-Quality Roll Forming Machines with Customization,Tailor-Made Solutions.
3. Competitive Pricing & Superior Performance,Cost-Effective Solutions.
4. Service Customers more 150+ Countries – Your Best Roll Forming Machine Partner.
Q:What service can you provide before order?
About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
